roof top packaged

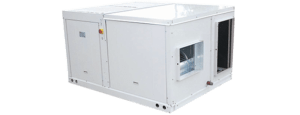

 rooftop packaged unit has been developed specifically to suit commercial application and is designed to ensure easy installation. Designed for high ambient application, the unit can continue operating at an outdoor ambient temperature of up to 52℃. These air conditioners are engineered to meet high static and large airflow for wider coverage requirements.

تـواصـل مـعـنـا

تم تطوير الوحدة المعبأة على السطح خصيصًا لتلائم التطبيقات التجارية وهي مصممة لضمان سهولة التركيب. تم تصميم الوحدة للاستخدامات المحيطة العالية ، ويمكنها الاستمرار في العمل في درجة حرارة محيطة خارجية تصل إلى 52 درجة مئوية. تم تصميم مكيفات الهواء هذه لتلبية تدفق الهواء الثابت والكبير لتلبية متطلبات التغطية الأوسع.

Need To Talk Now?

جاهز للتحدث؟

تواصل معنا الآن ولن تندم ابداً ^_^

تـواصـل مـعـنـا

نحن نعمل مع جميع أنواع أنظمة تكييف الهواء

، من أنظمة التدفئة المركزية والتهوية وتكييف الهواء التي يتم التحكم فيها بنظام

إدارة المباني إلى الأنظمة المنفصلة عالية الجدار المنفصلة.

التميز   .  الابتكار  .  الثقة

قم الان بالتحدث مع  مهندسين شركة تكييفك

للمساعدة فى اختيار تكييفك

إذا كان لديك اي استفسار او مقترحات

او شكاوى فلا تتردد بالتواصل معنا عزيزي العميل

Package air conditioner is a bigger version of the window air conditioner. However, units, it has a higher cooling or heating capacity and is usually able to cool an entire house or a commercial building. The nominal capacities ranges from 3 tonne to 15 tonne.

The conditioned air are transferred to the space to be conditioned through ducting which is usually hidden in the ceiling and wall of the building. The unit is placed outside the house, a special room in a building or even on top of a roof. This unit is factory assembled and skilled technicians are needed to install this type of unit.

Protection devices such as High/Low pressure switch, overload relays for all motors, water flow and air flow switches are included in the units. The compressor have winding protection thermostat built into the winding to disconnect the circuit in the event of overheating.

There is an interlocking circuit with the evaporator fan motor starter to ensure that the compressor can only start if the fan motor is running

Components

This self contained unit is assembled in a casing where all the air conditioning componenets are housed. They include:

  • Compressor usually hermetic or semi-hermetic type for operation on 380/400 Volts 3 Phase is used.
  • Water-cooled or Air-cooled condenser.
  • Electrical Panel.
  • Thermostatic Expansion Valve.
  • Air Filter.
  • Front Panel & Return Air Grill.
  • Evaporator Coil.
  • Evaporator Fan And Housing.
  • Heating and Humidifying Components may be included in the unit. Dehumidification is needed for cooling mode during summer and Humidification for heating mode during winter.
